Ultrasound Reimagined

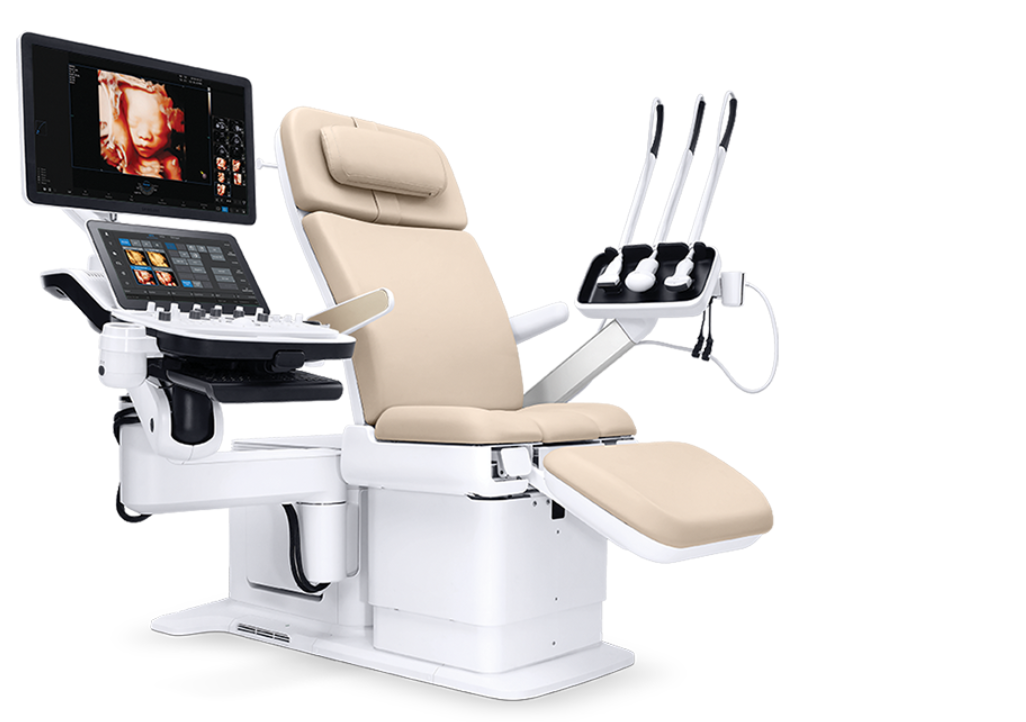

HERA I10

With input from clinicians and patients, HERA I10 transforms and elevates the ultrasound experience from each user’s perspective. A new form factor, a combination ultrasound system with built-in chair, allows for a more comfortable environment with refined imaging technologies for increased diagnostic confidence.



Crystal Architecture™

Crystal Architecture™, an imaging architecture that combines CrystalBeam™ and CrystalLive™, based on S-Vue Transducer™, is to provide crystal clear image.

- CrystalBeam™ is a new beamforming technology beneficial in delivering high-quality image resolution and increased uniformity of images.
- CrystalLive™ is Samsung’s up-to-date ultrasound imaging engine with enhanced 2D image processing, 3D rendering and color signal processing, to offer outstanding image performance and efficient workflow during complex cases.

CrystalBeam™

A New Beamforming for In-depth Image Creation

CrystalBeam™ utilizes Arbitrary Waveform Transmission, Massive Parallel Beamforming and Synthetic Aperture technologies to produce a faster frame rate and improved image uniformity.

CrystalLive™ 2D

Sophisticated 2D Images Processed by CrystalLive™

CrystalLive™ helps you to make more confident diagnoses with fundamental 2D images. Some major advantages of 2D images include shadow-suppressed images, lessened halo artifacts, and mitigated blurred area.

ShadowHDR™ selectively applies high-frequency and low-frequency of the ultrasound to identify shadow areas such as fetal head or spine where attenuation occurs.

HQ-Vision™ provides clearer images by mitigating the characteristics of ultrasound images that are slightly blurred than the actual vision.

ClearVision provides clearer tissue boundaries using the noise reduction filter and generates sharp 2D images. It reduces halo artifact that occurs when the tissue contour is enhanced, and removes noises on the tissue boundaries.

CrystalLive™ 3D

Realistic Description of 3D/4D Performance

CrystalLive™ in 3D/4D provides users with more realistic and high-resolution images. It outdoes conventional 3D imaging technologies in terms of viewing small parts and lighting effects.

CrystalVue™ is an advanced volume rendering technology that enhances visualization of both internal and external structures in a single rendered image using a combination of intensity, gradient and position.
*Optional Extra

RealisticVue™ displays high resolution 3D anatomy with exceptional detail and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.
*Optional Extra

HDVI™ is a volume rendering technology that improves visualization of edges and small structures in volume data. Upgraded marginal expression and image saturation expresses the very details from angle to shadow of the fetus.

CrystalLive™ Color

Detailed Expression of Blood Flow Dynamics

Color performance of CrystalLive™ has been improved to clearly visualize the hemodynamics of the blood flow. Greater sensitivity resulting from new color signal processing allows for a more accurate detection of peripheral blood vessels, microcirculatory blood flows, and volumes of slow blood flows.

LumiFlow™ is a three-dimensional visualization of blood flow, which helps to understand the structure of blood flow and small vessels intuitively.
*Optional Extra

MV-Flow™ offers a novel alternative to power Doppler for visualizing slow flow of microvascularized structures. High frame rates and advanced filtering enable MV-Flow™ to provide a detailed view of blood flow in relation to surrounding tissue or pathology with enhanced spatial resolution.
*Optional Extra

S-Flow™, a directional Power Doppler imaging technology, can help to detect even the peripheral blood vessels. It enables accurate diagnosis when blood flow examination is especially difficult.

Crystal Clear Cycle™

Samsung’s Commitment to Life-Long Healthcare for Women

Crystal Clear Cycle™, an integrated solution for women’s health issues, represents Samsung’s commitment to ensuring life-long healthcare for women. The Crystal Clear Cycle™ categorizes the most significant health events for women into six stages and provides effective diagnostic solutions at each stage.

A semi-automatic technology for biometric measurement, BiometryAssist™, enables users to measure the growth of the fetus more quickly and with greater accuracy while maintaining exam consistency.

5D CNS+™ uses intelligent navigation to provide 6 measurements from 3 transverse views of the fetal brain to enhance measurement reproducibility and streamline workflow.
*Optional Extra

5D Limb Vol.™ is a semi-automated tool to quickly and accurately measure upper arm or thigh volumes from 3 simple seed points on a single volume data set.
*Optional Extra

Relaxing Atmosphere

for the patients

HERA I10 delivers differentiated user experience for the satisfaction of the patients. Effortless usability and the clean system is the key of relaxing ultrasound examination for the patients.

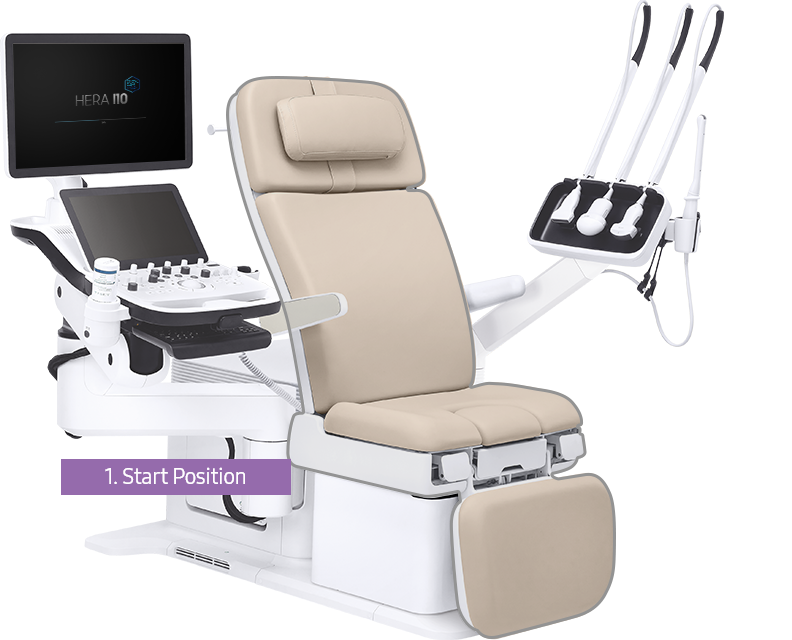

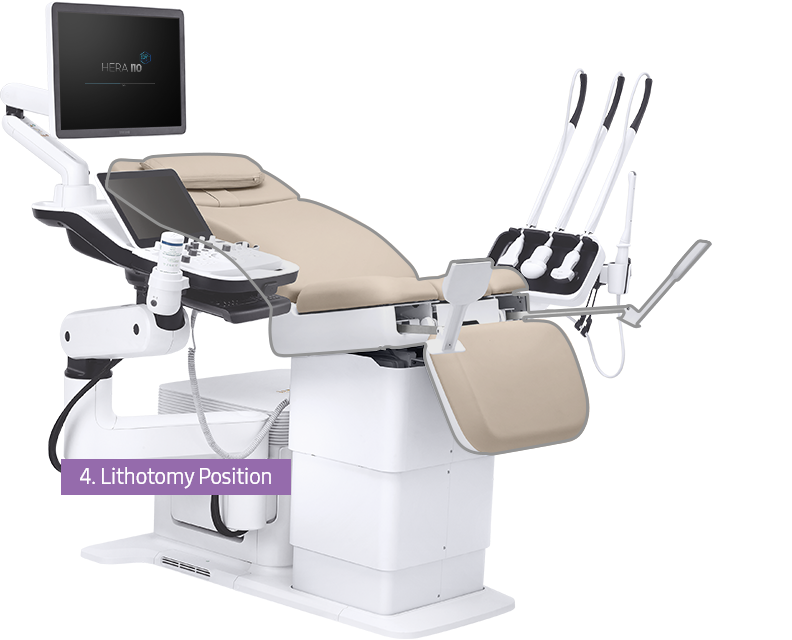

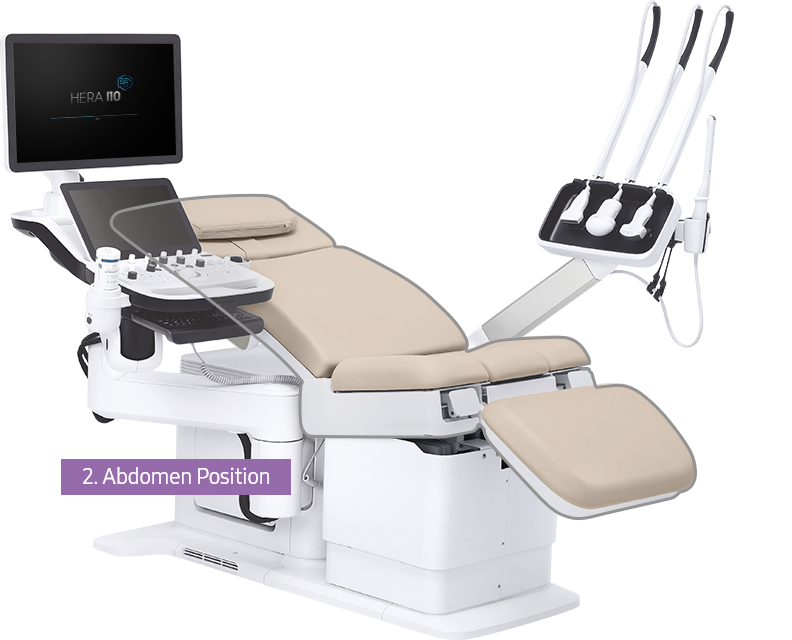

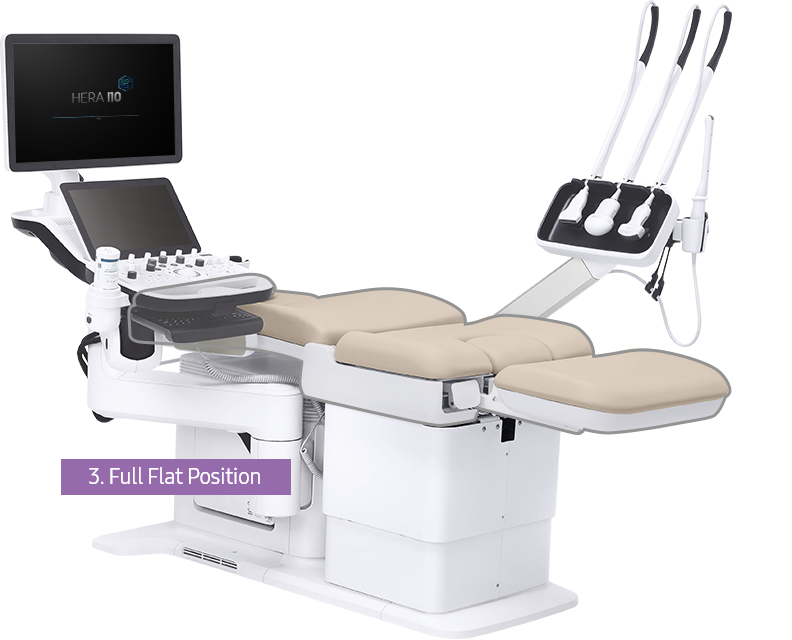

When your patients walk into the exam room, they will see a warm and inviting environment with HERA I10. Help your patients gently ease into the ultrasound exam in a relaxing and comforting way. The powered, adjustable Built-in Chair has four programmable positions to help patients safely and comfortably move into the optimal position needed to capture the necessary images to provide a confident diagnosis. Take your patient satisfaction to a new level by elevating your ultrasound experience with HERA I10.

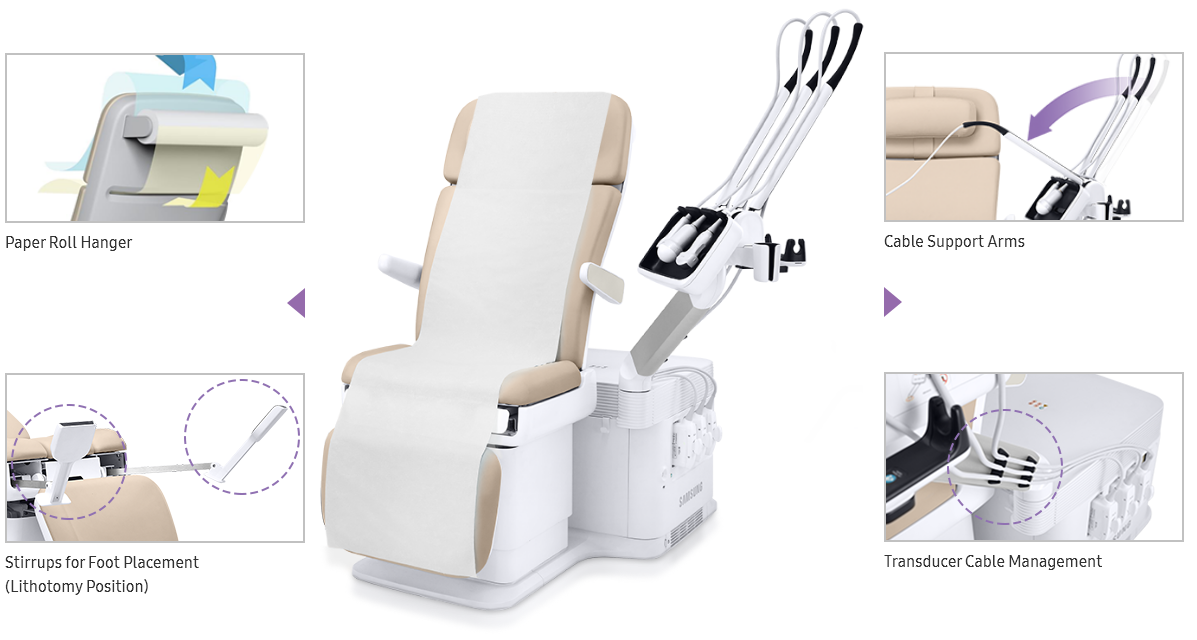

Clean and Clutter-free Environment

The Paper Roll Hanger provides a convenient and easy way to maintain a clean and safe environment.
The Transducer Station sustains the cable to not reach the patient’s body.
The ergonomic structure satisfies the patients to experience ultrasound exams in a clean and relaxing atmosphere.

Ergonomic Comfort

for healthcare professionals

With the HERA I10, healthcare professionals may experience less muscle strain and increased user satisfaction while scanning.
Each component of the HERA I10 implements our philosophy :
deliver ergonomic comfort and help users stay healthy.

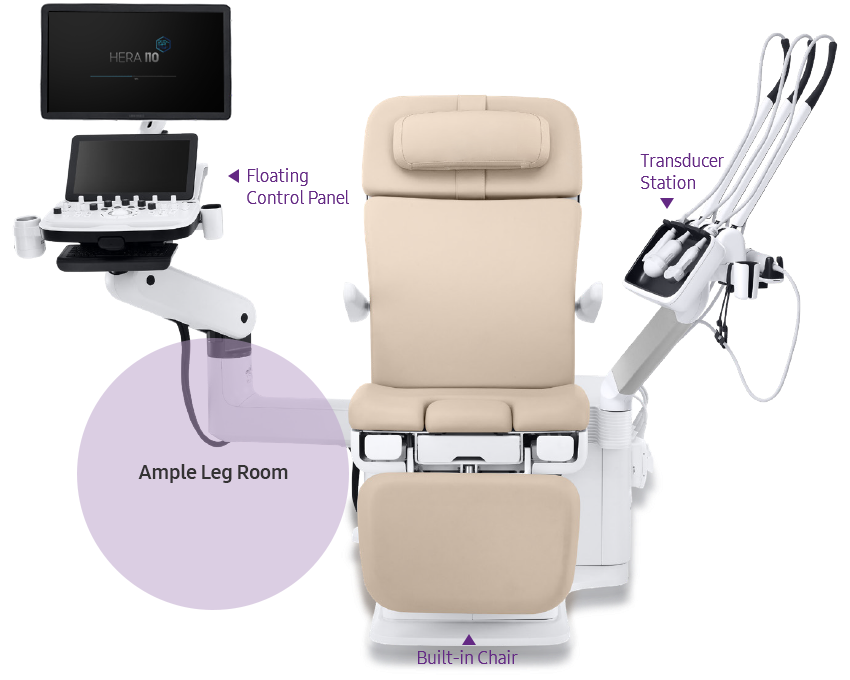

Ample Leg Room & Relieved Muscle Strain

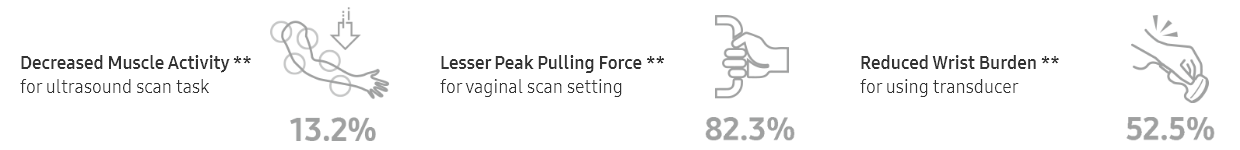

The conventional location of the system electronics is located at the backside of the Built-in Chair to offer plenty of leg room for the examiner. The Transducer Cable helps decrease muscle strain, reduces peak pulling force and wrist burden. The cable is coming from a higher position instead of a lower position like in conventional system, thus making the transducer feel lighter in operation.

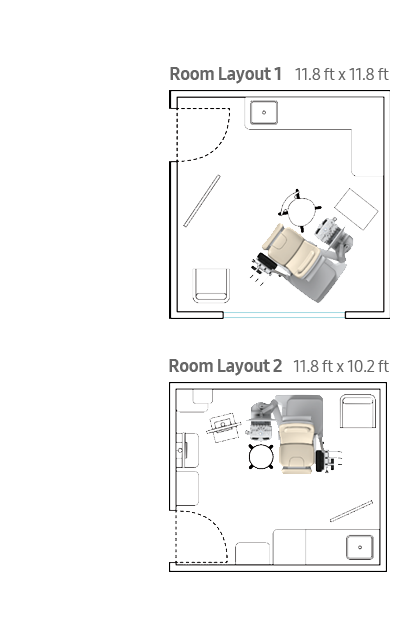

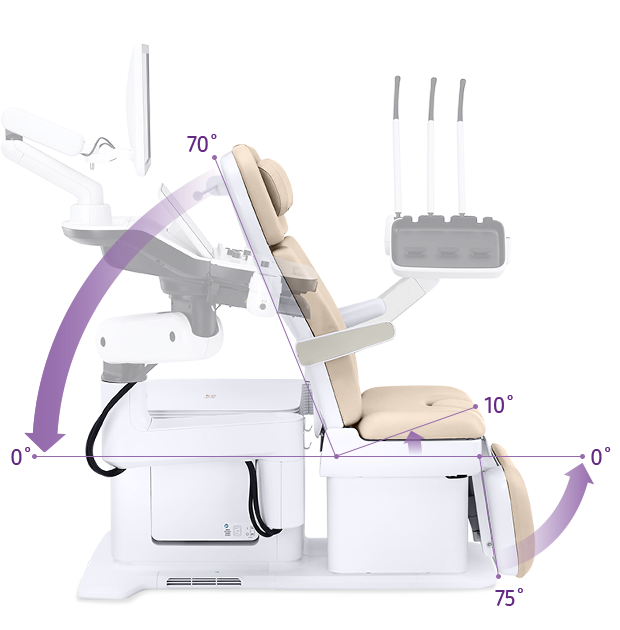

HERA I10 Dimensional Information

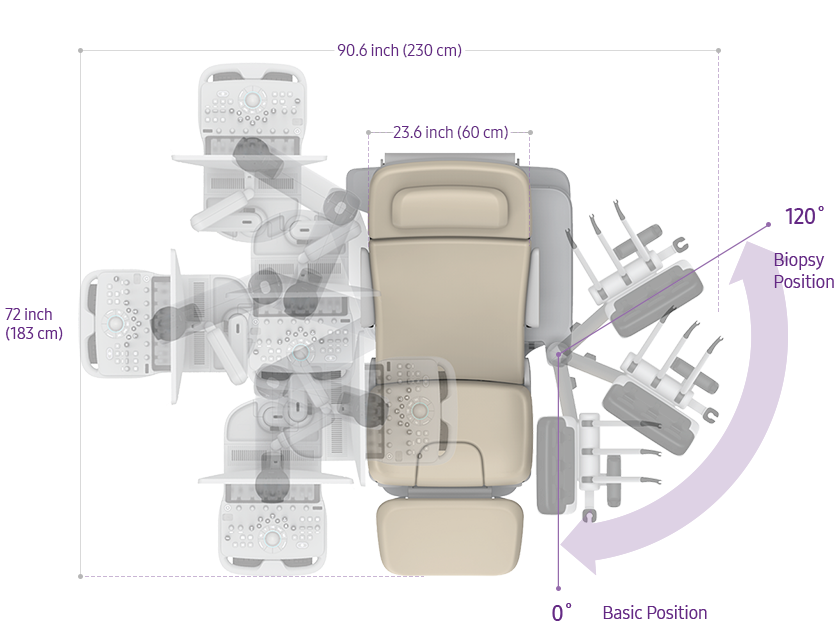

Maximum Size : Length 7.5ft (230cm) x Width 6ft (183cm) x Height 5.7ft (175cm)

CrystalLive™ in 3D/4D provides users with more realistic and high-resolution images. It outdoes conventional 3D imaging technologies in terms of viewing small parts and lighting effects.

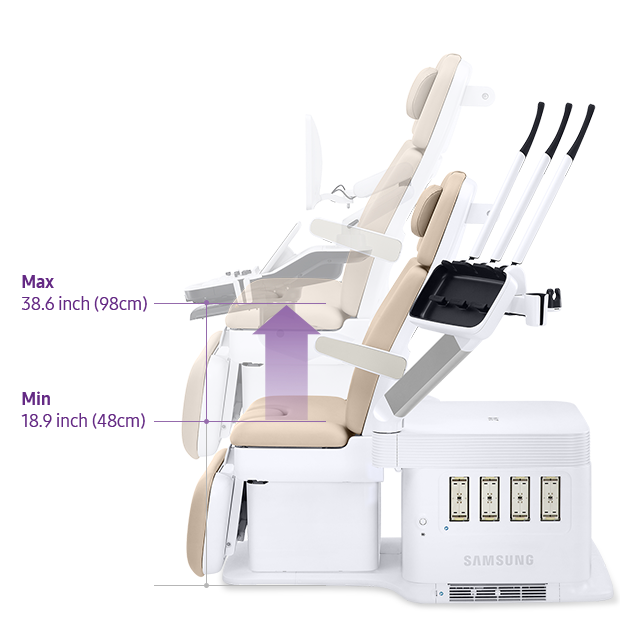

Fully automatic chair movement, wheel chair accessible seat height.


Transducers



Volume Transducers

CV1-8A

Abdomen, obstetrics, gynecology

EV3-10B

Obstetrics, gynecology, urology

Convex Array Transducers

CA3-10A

Abdomen, obstetrics, gynecology

CA2-9A

Abdomen, obstetrics, gynecology

CA2-9A

Abdomen, obstetrics, gynecology

CA1-7A

Abdomen, obstetrics, gynecology, contrast

CF4-9

Pediatric, vascular

Linear Array Transducers

L3-12A

Small parts, vascular, musculoskeletal

LA2-9A

Small parts, vascular, musculoskeletal

Endocavity Transducers

EA2-11B

Obstetrics, gynecology, urology

VR5-9

Obstetrics, gynecology, urology

E3-12A

Obstetrics, gynecology, urology

Phased Array Transducers

PA4-12B

Cardiac, pediatric

PM1-6A

Cardiac, TCD, abdomen

PA3-8B

Cardiac, pediatric, abdomen
